2026 Semiconductor Industry Outlook: The AI Supply Chain Becomes the Market

The 2026 boom is concentrated in memory and AI infrastructure

The market is expanding at an exceptional rate, but the revenue pool is far less broad than the headline suggests.

The WSTS Spring 2026 forecast places annual semiconductor sales at US$1.51 trillion, up 90%, with memory revenue rising roughly 250% to more than US$800 billion and logic growing 37%. Gartner's April forecast is lower at US$1.32 trillion, yet it describes the same concentration: US$633.3 billion of memory revenue, DRAM prices up 125%, NAND prices up 234% and no broad supply relief expected before late 2027. Gartner estimates AI semiconductors at about 30% of the market and hyperscaler AI spending at more than half of total hyperscaler expenditure.

The commercial consequence is price-led growth. Accelerator demand is pulling HBM, leading-edge wafers, advanced packaging, scale-up fabrics and liquid-cooling hardware into one capacity stack, while buyers of PCs, servers and storage absorb memory inflation generated elsewhere. Revenue can therefore rise rapidly even when unit demand across much of the industry remains ordinary.

What should a board infer from two credible trillion-dollar forecasts?

Forecast disagreement should change governance, not produce an artificial midpoint. Procurement models should retain each source's date, scope and category definitions, then stress cash flow against memory pricing, package lead times and workload utilization. A range is useful only when its components are visible.

AI system economics have moved beyond the accelerator die

Delivered AI performance is now constrained by memory bandwidth, package integration, network topology, power delivery and cooling as much as by nominal compute.

The relevant unit of analysis is the rack. NVIDIA states that a Rubin GPU provides 50 petaflops of NVFP4 compute and 3.6 terabytes per second of NVLink bandwidth, while a Rubin NVL72 rack exposes 260 terabytes per second of aggregate scale-up bandwidth. AMD's Helios architecture specifies 72 GPUs, 432 gigabytes of HBM4 and 19.6 terabytes per second of HBM bandwidth per GPU, or 31 terabytes of HBM4 and 1.4 petabytes per second across the rack.

These are vendor-stated architecture figures, not cross-platform benchmarks. AWS describes a Trainium3 UltraServer with as many as 144 chips and 362 FP8 petaflops, while its claims of 4.4 times the compute performance, four times the energy efficiency and four times lower latency are comparisons with Trainium2 under AWS methodology. Every commercial evaluation still needs the same production workload, model quality threshold, context length, batch size and service-level latency.

Interconnect standards clarify the engineering envelope without settling the software question. UALink 1.0 specifies 200 GT/s per lane, 800 Gb/s per station in each direction, a request-response round-trip target below one microsecond and support for as many as 1,024 accelerators. CXL 3.2 recommends selected transaction latency targets of 40 to 150 nanoseconds, but real memory-tier overhead also includes device, switch, host, software and contention effects.

HBM and advanced packaging are the binding production constraints

AI demand is monetizing the interfaces between compute, memory and packaging, where substitution is slow and qualification costs are high.

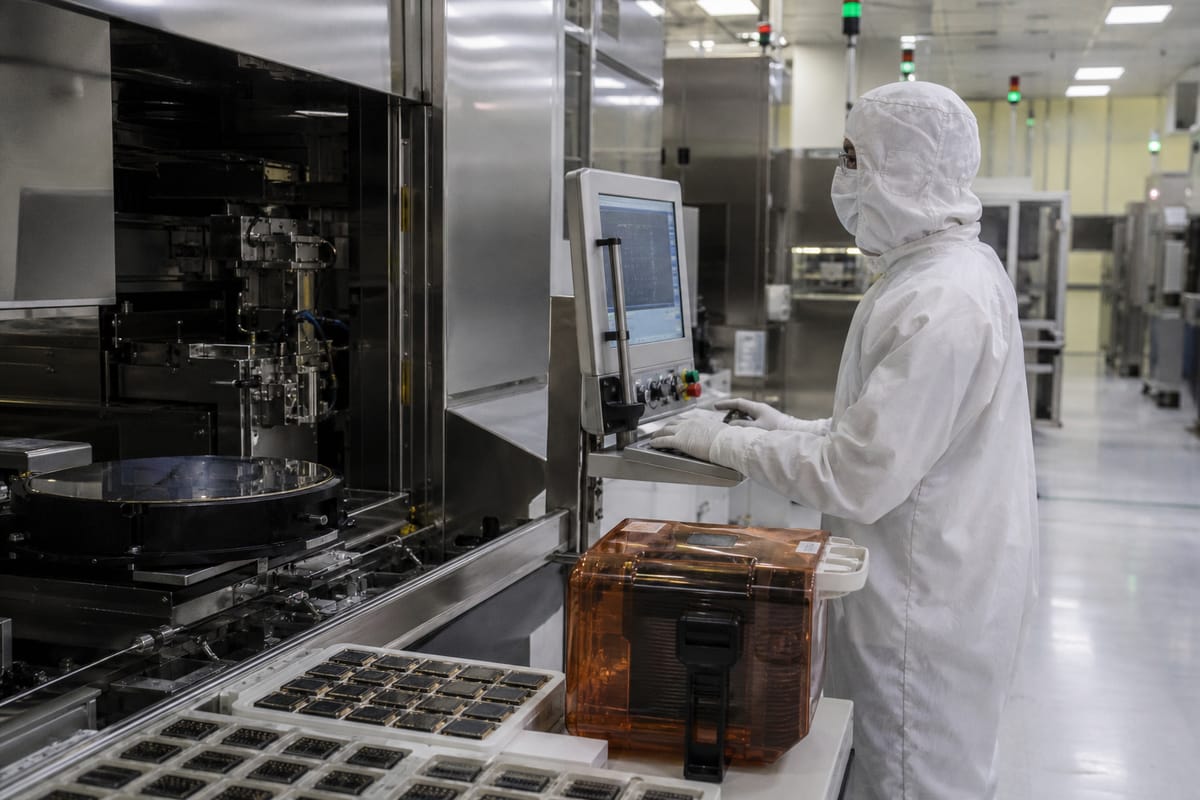

An accelerator package is not a GPU die plus generic DRAM. HBM stacks sit beside logic on a silicon interposer or equivalent advanced substrate, and the assembly must pass thermal, signal-integrity and yield requirements before it becomes a shippable system. More foundry wafers do not resolve a shortfall if HBM, packaging substrates, bonding capacity or final test remain constrained.

The financial evidence is unusually direct. SK hynix reported second-quarter 2026 revenue of KRW79.3187 trillion, operating profit of KRW60.5426 trillion and a 76% operating margin; it began HBM4 mass shipments during the quarter and said it had long-term agreements with about ten key customers. Broadcom separately reported fiscal second-quarter AI semiconductor revenue of US$10.8 billion, up 143%, showing how custom accelerators and networking silicon are absorbing part of the same infrastructure budget.

Long-term agreements reduce spot availability and can transfer forecast error to buyers. They also entrench package, memory and compiler choices before utilization is known. The prudent contract names allocation windows, acceptance tests, remedies, spares and requalification obligations rather than treating capacity access as an informal supplier assurance.

Foundry and equipment concentration remain structural

Leading-edge supply still depends on a narrow set of manufacturers and tool vendors, so announced capacity should not be confused with qualified output.

Counterpoint Research estimates TSMC held 73% of pure-play foundry revenue in the first quarter of 2026, versus 7% for Samsung. TSMC's second-quarter results show US$40.20 billion of revenue and a 60.3% operating margin; the company has indicated US$52 billion to US$56 billion of 2026 capital expenditure, after US$40.9 billion in 2025. TSMC says N2 entered high-volume manufacturing in the fourth quarter of 2025, with N2P and A16 scheduled for high-volume manufacturing in the second half of 2026.

Tool supply is scaling with that spend. SEMI forecasts 2026 equipment sales of US$165.9 billion, including US$143.9 billion of wafer-fab equipment, US$38.8 billion for DRAM equipment, US$15.3 billion for test and US$6.7 billion for assembly and packaging. ASML reported second-quarter sales of €9.3 billion and guided to €43 billion to €45 billion for 2026; it plans roughly 30% more low-NA EUV capacity for 2027 from a base of about 65 systems in 2026 and is considering another 30% step for 2028.

The lag matters. Cleanrooms, tools, recipes, process control, package flows and customer qualification form a serial chain. Each stage consumes capital before yielding saleable output, and a failure at the final test step strands value accumulated upstream.

Where does vendor lock-in actually sit in the AI stack?

Lock-in is distributed across model code, graph compilers, kernels, collective libraries, scale-up protocols, schedulers, observability, checkpoint formats and cloud services. Hardware substitution therefore has an engineering cost even when another accelerator offers adequate arithmetic and memory. A credible exit plan is a maintained second build path with portable checkpoints and a measured requalification interval.

Power and cooling convert chip scarcity into site scarcity

A booked accelerator allocation has limited value without a dated grid connection, compatible rack density and an operating cooling design.

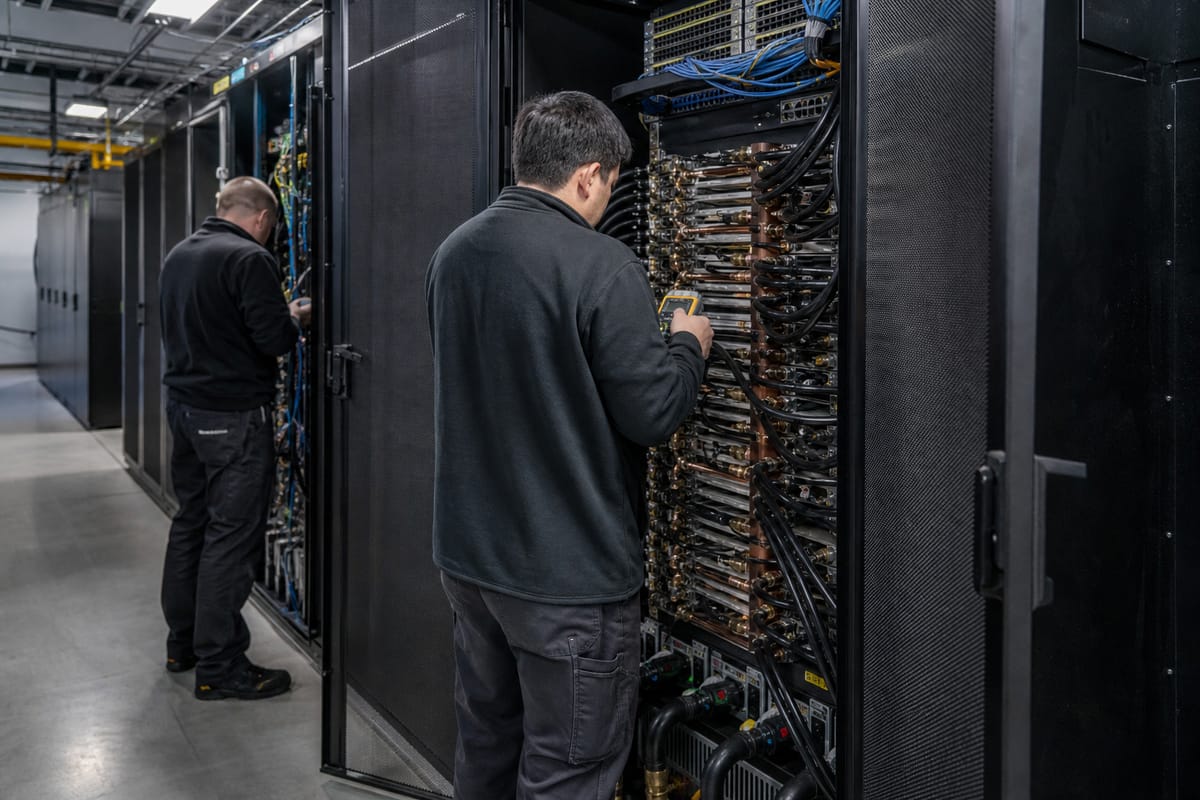

The rack has become a mechanical and electrical product. Direct-to-chip liquid loops, coolant-distribution units, facility water interfaces, busways, backup power, high-radix switching and dense fibre routing must be commissioned together. Peak accelerator FLOPS do not reveal throttling, network stalls, failed jobs or tokens per megawatt.

This shifts diligence into facilities and operations. A buyer needs p95 and p99 latency, time to first token, throughput at a stated quality threshold, power draw, memory occupancy, network utilization, failed-job rate and queue time on production-like data. Capital expenditure buys the installed stack; operating expenditure determines whether it stays fed, cooled and utilized.

Export policy is now part of product architecture

Advanced chips, HBM and manufacturing tools carry jurisdictional constraints that can alter market access after a system design is committed.

The U.S. Bureau of Industry and Security added controls in December 2024 covering advanced semiconductor equipment, software and HBM, then revised China licensing policy in January 2026 so exports of products including NVIDIA H200 and AMD MI325X could be reviewed case by case under stated security conditions. A January 2026 Section 232 proclamation imposed a 25% tariff on a narrow class of advanced chips and derivatives, with exemptions that include specified U.S. data-centre, research, startup and public-sector uses. These measures are not footnotes: they influence SKU design, shipment routes, customer verification, inventory placement and the residual value of deployed systems.

A globally portable software stack can still be attached to non-portable hardware. Boards should separate technical portability from legal deployability and require an auditable end-user, end-use and destination chain. Export classification belongs in the architecture decision record before purchase orders are signed.

Singapore's role is advanced manufacturing and regional orchestration

Singapore is material to the semiconductor chain through equipment production, chip output and new HBM packaging capacity, but it does not eliminate dependence on external leading-edge nodes.

Singapore's Economic Development Board says semiconductors contribute about 6% of national GDP, support more than 35,000 jobs and account for one-fifth of global semiconductor-equipment production; EDB also describes the country as producing roughly one in ten chips globally. Micron broke ground on a US$7 billion HBM advanced-packaging facility designed to begin operations in 2026 and add meaningful capacity from 2027. That investment connects Singapore directly to the AI memory chain.

The downstream limit is power. IMDA's Green Data Centre Roadmap targets at least 300 MW of near-term capacity and potentially more than 200 MW through green-energy options, while supporting facilities that can achieve PUE of 1.3 or lower. Semiconductor strategy and data-centre strategy therefore meet at the grid: packaging output can scale faster than domestic AI compute if power allocation remains deliberately constrained.

Singapore remains dependent on Korean HBM wafer production, Taiwanese leading-edge foundry output, Dutch lithography and U.S.-controlled design tools. Its advantage is execution at a trusted logistics, equipment and packaging node, not sovereign control of the whole stack. That distinction is commercially useful and strategically unforgiving.

Procurement should price delivered performance and reversibility

The defensible buying strategy separates workload commitments from hardware identity and makes operational obligations measurable.

Which capacity risks can a C-suite buyer contract around—and which remain sovereign?

Allocation windows, price holds, acceptance tests, service credits, spares, telemetry access and portability work can be negotiated. An export prohibition, a missing grid connection, a single-source process or an unqualified package alternative cannot. Governance improves when these categories are separated before capital approval.

• Benchmark the workload. Record tokens per second, time to first token, p95 and p99 latency, model quality, batch size, context length, power draw and failed-job rate on production-like data.
• Expose the dependency tree. Name the compiler, kernels, scale-up fabric, scale-out network, HBM generation, package, storage path, scheduler, cooling system and export classification.
• Fund portability before migration. Maintain a tested second build path, portable checkpoints and a measured requalification interval.
• Separate scarce and routine budgets. Ring-fence AI compute, high-capacity memory and enterprise storage so memory inflation does not silently cancel ordinary infrastructure refreshes.
• Review utilization monthly. Report queue time, achieved throughput, memory occupancy and tokens per megawatt alongside financial utilization.

An owned cluster offers topology control, a defined security boundary and balance-sheet depreciation, but transfers facility readiness, utilization, spares, operations and residual-value risk to the buyer. Cloud accelerator services offer faster access and elasticity, but introduce region availability, committed-spend, egress and managed-service coupling. In both cases the contract should state the service outcome and exit work, not merely a processor model.

The watchlist is narrower than the headline market

HBM contract behavior, advanced-package throughput and paid utilization of deployed AI capacity will reveal the cycle before total semiconductor revenue does.

Memory price indexes will show when new supply begins to matter, although long-term HBM agreements may delay pass-through. Package lead times and test yields will show whether additional wafers are becoming shippable systems. Hyperscaler disclosure on custom silicon, committed workloads and infrastructure revenue will show whether capital is meeting paid demand or accumulating as underused capacity.

The useful dashboard sits below the headline: HBM allocation, CoWoS-class output, AI networking revenue, cloud accelerator occupancy, power-connection dates and export-license status. By the time total market revenue turns, purchase orders, contract prices and tool utilization will already have moved. Deloitte estimated that fewer than 20 million generative-AI chips sat inside roughly 1.05 trillion semiconductor units sold in 2025—under 0.002% of units, or fewer than one in 50,000.
